Specifications

• Camera

• Image Sensor1/1.8" Progressive Scan CMOS

• Max. Resolution2688 × 1520

• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

• Shutter Speed1/3 s to 1/100,000 s

• Day & Night24/7 Color imaging

• Angle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

• Lens

• Lens TypeFixed focal lens, 2.8 and 4 mm optional

• Focal Length & FOV2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°4 mm, horizontal FOV 95°, vertical FOV 47°, diagonal FOV 115°

• Lens MountM16

• Iris TypeFixed

• ApertureF1.0

• Depth Of Field2.8 mm: 2.3 m to ∞4 mm: 3.2 m to ∞

• DORI

• DORI2.8 mm:D: 58 mO: 23 mR: 11 mI: 6 m4 mm:D: 77 mO: 30 mR: 16 mI: 8 m

• Illuminator

• Supplement Light TypeWhite Light

• Supplement Light RangeUp to 30 m

• Smart Supplement LightYes

• Video

• Main Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.

• Video CompressionMain stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 8 Mbps

• H.264 TypeBaseline Profile/Main Profile/High Profile

• H.265 TypeMain Profile

• Bit Rate ControlCBR/VBR

• Scalable Video Coding (SVC)H.264 and H.265 encoding

• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio

• Environment Noise FilteringYes

• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

• Network

• Simultaneous Live ViewUp to 6 channels

• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets

• User/HostUp to 32 users. 3 user levels: administrator, operator and user

• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported

• ClientiVMS-4200, Hik-Connect, Hik-Central

• Web BrowserPlug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+

• Image

• Wide Dynamic Range (WDR)130 dB

• SNR≥ 52 dB

• Day/Night SwitchDay, Night, Auto, Schedule

• Image EnhancementBLC, HLC, 3D DNR

• Image Parameters SwitchYes

• Image SettingsRotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

• Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB

• Built-In MicrophoneYes

• Audio-LS:1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm-LS:1 input, 1 output (max. 12 VDC, 20 mA)

• Reset KeyYes

• Event

• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception

• LinkageUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email

• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detectionScene change detection

• Deep Learning Function

• Face CaptureYes

• Perimeter ProtectionLine crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)

• General

• Power12 VDC ± 25%, Ø5.5 mm coaxial power plug, reverse polarity protection, 0.54 A, max. 6.5 WPoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W

• Camera MaterialBase: aluminum, cover: plastic

• Camera DimensionØ113.6 mm × 72.6 mm (Ø 4.5" × 2.9")

• Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")

• Camera WeightApprox. 400 g (0.9 lb.)

• With Package WeightApprox. 635 g (1.4 lb.)

• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

• Approval

• EMCFCC (47 CFR Part 15, Subpart B)CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)RCM (AS/NZS CISPR 32: 2015)IC (ICES-003: Issue 7)KC (KN32: 2015, KN35: 2015)

• SafetyUL (UL 62368-1)CB (IEC 62368-1: 2014+A11)CE-LVD (EN 62368-1: 2014/A11: 2017)LOA (IEC/EN 60950-1)BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)

• EnvironmentCE-RoHS (2011/65/EU)WEEE (2012/19/EU)Reach (Regulation (EC) No 1907/2006)

• Electrical Safety ProtectionIP67 (IEC 60529-2013)IK8 (IEC 62262:2002)

Package includes:

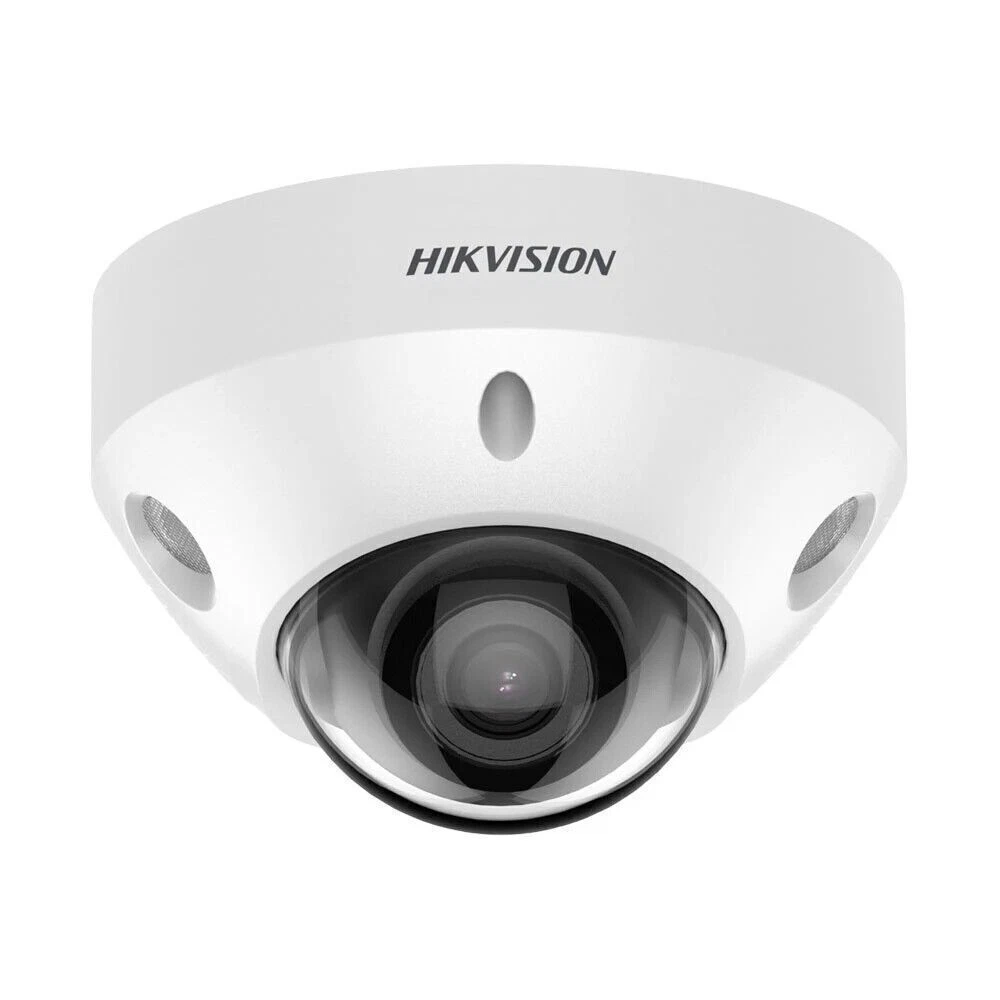

• 1 x DS-2CD2547G2-LS  4MP ColorVu Fixed Mini Dome Network Camera

• 1 x User Manual

• 1 x Installation screws
